TE Connectivity PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPDT | PE014024
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 13 pcs
Mfr. Part No: PE014024
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | TE Connectivity |
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 1 |
| Latching | No |
| Series | PE |
| Terminal Type | Through Hole |
| Maximum Switching Voltage AC | 400V ac |
| Length | 20mm |
| Coil Resistance | 2725Ω |
| Contact Material | Silver Nickel Alloy |
| Maximum Operating Temperature | +85°C |
| Height | 10mm |
| Depth | 10mm |
| Minimum Operating Temperature | -40°C |
| Maximum Switching Power AC | 1.25 kVA |
| Application | PCB |
Product Details
PE Series
High coil sensitivity: 200mW
Applications: industrial electronic, household appliances and control equipment
Coil power: 200 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: ≥4 mm; ≥3.2 mm
Switching voltage: 250Vac
H 10, W 20, D 10
Applications: industrial electronic, household appliances and control equipment
Coil power: 200 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: ≥4 mm; ≥3.2 mm
Switching voltage: 250Vac
H 10, W 20, D 10
Related products

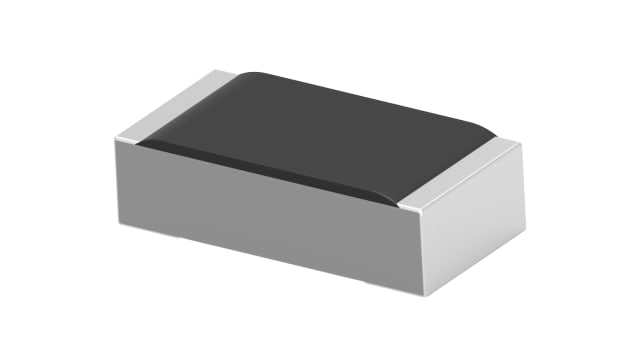

Surface Mount Resistors
