TE Connectivity, Sigma 3656, 1054 Yes Wirewound Surface Mount Inductor 2.2 μH Wirewound ±20 % 23 A Idc | 36561054M2R2T
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 14 pcs
Mfr. Part No: 36561054M2R2T
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | TE Connectivity |
| Product Type | Wirewound Surface Mount Inductor |
| Inductance | 2.2 μH |
| Maximum DC Current | 23A |
| Package/Case | 1054 |
| Length | 11.5mm |
| Packaging | Tape & Reel |
| Automotive Standard | AEC-Q200 |
| Shielding | Yes |
| Maximum DC Resistance | 0.0049Ω |
| Minimum Operating Temperature | -55°C |
| Series | Sigma 3656 |
| Maximum Operating Temperature | 155°C |
| Inductance Tolerance | ±20 % |
| Standards/Approvals | AEC-Q200 |
| Diameter | 5.2 mm |
| Depth | 5.2mm |
| Height | 10mm |
| Inductor Construction | Wirewound |
Product Details
The TE Connectivity Automotive grade SMD power inductors are AEC-Q200 qualified components designed for high reliability in demanding applications. These ultra-thin inductors offer high saturation current and are part of the 3656 series, which is suitable for surface mounting and available in nine different package sizes. They are ideal for use in mobile phones, DVDs, HDDs, DSCs, and LCDs, as well as in the new energy industry. Additionally, they are well-suited for thin-type power supply modules and DC/DC converter applications, where compact design and efficient performance are essential.
High saturation current
Low DC resistance help achieve high conversion efficiency and lower temperature rising
Suitable for surface mounting
High reliability
AEC Q200 qualified
Moisture sensitivity level is MSL1
Related products
Automotive Connectors
TE Connectivity, Multilock Hybrid Automotive Connector Plug 16 Way 917981-6 | 917981-6
1 ₫

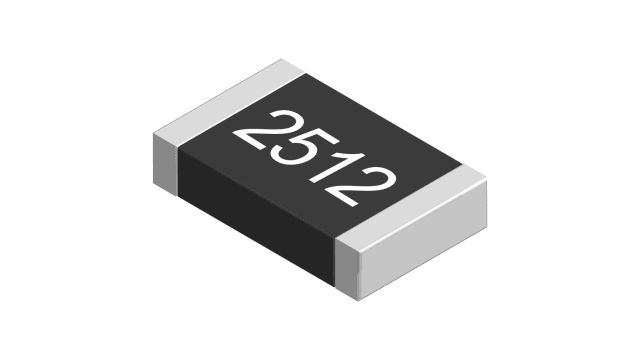

Surface Mount Resistors
