Theben Digital TOP3 DIN Rail Time Switch, 1-Channel 230 V ac | TR610 top3
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 13 pcs
Mfr. Part No: TR610 top3
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Theben |
| Product Type | DIN Rail Time Switch |
| Sub Type | Digital |
| Number of Channels | 1 |
| Units Measured | Hours |
| Segment Length | 1min |
| Terminal Type | DuoFix Spring |
| Contact Configuration | SPDT |
| Maximum Supply Voltage | 230V ac |
| Memory Spaces | 56 |
| Battery Life | 10year |
| Series | TOP3 |
| Depth | 69.2mm |
| Height | 90.1mm |
| Standards/Approvals | RoHS, VDE, EN 60 730-1 |
Product Details
Theben Time Switch
The Theben digital time switch is a single channel, DIN rail, single pole double throw (SPDT) device. It is an astronomical time switch with the daily program and 56 memory locations. It has a supply voltage rating of 230VAC. The housing material of this switch is highly temperature resistant made with self-extinguishing thermoplastic. This device enables safe transfer via optional Bluetooth low energy OBELISK top3. It is useful for industrial applications.
Features and Benefits
DuoFix spring terminals with wire diameter 0.5mm² and 2.5mm² (with or without wire end sleeve)
Wire or strand button for releasing the plug-in connection
Text-oriented user guidance in display
Pre-set date and time
Fully operable without mains connection
Zero-cross switching for relay-saving switching and high lamp loads
Automatic summer/ winter time changeover
Switching preselection
Permanent switching on/ off
PIN coding
Shortest switching time is 1 minute
The ambient temperature ranges between -30°C and 55°C
Certifications
IP20 rated
EN 60 730-1
VDE
Related products
Schneider Electric

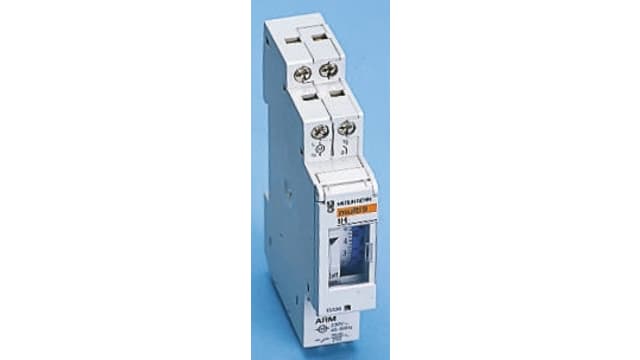

Schneider Electric Analogue Acti 9 IH DIN Rail Time Switch, 1-Channel 230 V ac | 16654
