Trumeter APM Digital Digital Panel Multifunction Meter for Speed, Rate, Flow, 68 mm x 68 mm | APM-RATE-ANO

The APM (Advanced Panel Meter) Rate Meter for measuring speed, rate, and flow, commonly used in applications such as motor speed monitoring, pump controls, and production line management. It supports process time measurement, accommodates a wide input range of 0-60Khz (NPN, PNP or Push-Pull), and offers an accuracy of 0.01%.

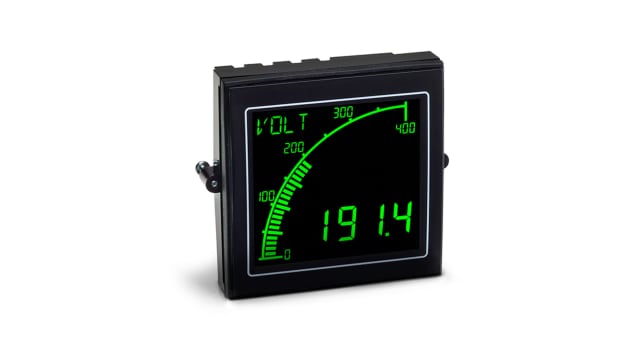

The unique display combines the readability of analogue with the precision of digital, with large readout, 40-segment bar graph, and colour-changing backlight that provides instant feedback on conditions. It is highly customizable through the free APM configuration software, including scale and range, alarms, colour changing, messaging and more. It features two independent outputs that can be used as digital (open collector) or analogue (4-20mA).

Combine the APM with the IoT Gateway to instantly unlock your data using the powerful remote monitoring platform, Trumeter Cloud. Monitor your meters anytime, anywhere with your free subscription, and receive data recording along with online, SMS, and email alerts.

The negative display, for darker environments where high contrast is required, features colour changing figures on a black background.

• 0-60Khz wide input range

• 0.01% accuracy

• Fully user-configurable digital panel meter

• Dynamic colour-changing backlight – green, red, white

• Remote monitoring with Trumeter Cloud when used with Trumeter IoT Gateway

• 40-segment bar graph display

• Large, high contrast, anti-glare, LCD display with wide viewing angle

• Starburst display area for messages and alarm information

• Scaling and range options including min. and max, offset and gain, centre zero, 20 point non-linearization scaling and more

• 10 alarm setpoints & configurable digital output delay

• Two independent outputs as digital or analogue (4-20 mA)

All Trumeter products come with a 3-year manufacturer’s warranty
