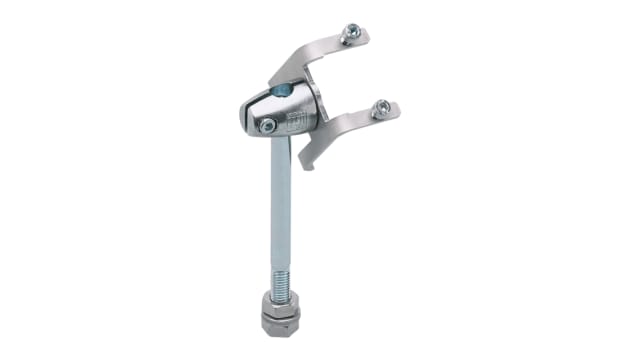

Vega Compression Flange for Use with Level Transmitter | PS61NRS.YD
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 16 pcs
Mfr. Part No: PS61NRS.YD
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Vega |
| Accessory Type | Compression Flange |
| For Use With | Level Transmitter |
Product Details
VEGAPULS 61 Non-Contact Microwave Radar Level Transmitter
IP66 rated
Measuring range up to 10m
Unaffected by temperature, vacuum, pressure, vapours, gases or density
Non-contact measurement with microwave pulses
Accurate to 5mm using Echofox technology
Maintenance-free rugged design
Display/adjustment in head via PLICSCOM module or VEGADIS 61 remote housing (both types not supplied with unit)
2-wire (20 to 36V loop powered) technology; HART protocol with universal commands
Output signal: 0//4 to 20mA (HART)
3/4in. BSP mount
Vessel pressure:; -1 to +3 bar
Housing material: PBT
Transducer material: PVDF
Cable entries: 2 x M20
Simple calibration and in-head display of echo curve
Fully communicative built-in data and trend logging
Measuring range up to 10m
Unaffected by temperature, vacuum, pressure, vapours, gases or density
Non-contact measurement with microwave pulses
Accurate to 5mm using Echofox technology
Maintenance-free rugged design
Display/adjustment in head via PLICSCOM module or VEGADIS 61 remote housing (both types not supplied with unit)
2-wire (20 to 36V loop powered) technology; HART protocol with universal commands
Output signal: 0//4 to 20mA (HART)
3/4in. BSP mount
Vessel pressure:; -1 to +3 bar
Housing material: PBT
Transducer material: PVDF
Cable entries: 2 x M20
Simple calibration and in-head display of echo curve
Fully communicative built-in data and trend logging
Note: PLICSCOM module and VEGADIS 61 remote housing available separately – see stock nos. 468-3514 and 468-3508 respectively
Note
This product must be licensed by the user and is supplied with a licensing application form. Licensing is free of charge. Users should contact RS Technical in case of difficulty and for clarification of requirements.
