Vega VEGAVIB 61 Series Sensor Level Probe, Relay Output, Cable | VIBS61.EXX2RA
1 ₫
Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT
Đã bán: 7 pcs
Mfr. Part No: VIBS61.EXX2RA
Đánh giá: ⭐⭐⭐⭐⭐
Specifications
| Attribute | Value |
|---|---|
| Brand | Vega |
| Device Type | Sensor |
| Mounting Type | Cable |
| Switch Output | Relay |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +150°C |
| Maximum Current | 1 A dc, 3 A ac |
| Maximum Pressure | 1.1bar |
| Series | VEGAVIB 61 |
Product Details

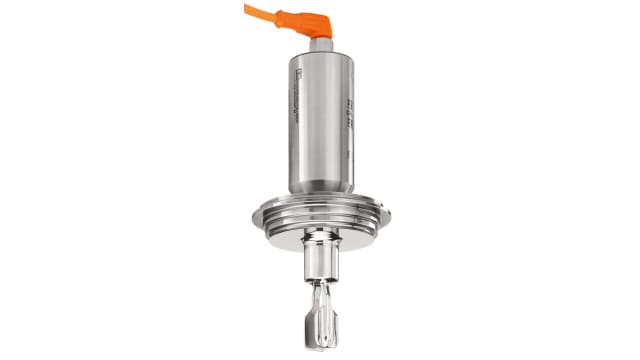

Vega Vibrating Level Switch
The Vega vibrating rod level switch has a relay (DPDT), contactless electronic switch andtwo-wire output. Due to its design, jamming and build-up of bulk solid material is avoided. This switch is suitable as a high or low-level switch in vessels detecting foodstuffs, perishable or granulate materials, which can cause problems when retained in fork solids level probes. It has low maintenance costs as well as a simple setup to save you time. Vibrating Liquid/Solid Level Probes – Squings.
All of these probes are maintenance-free and have an external LED switch status indication.
Features and Benefits
The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDC
Process fitting material is thread G1½ PN16, DIN3852-A
Low maintenance costs
Minimum time and cost expenditure, simple setup without a medium
Reliable function through product-independent switching point
Operating temperature ranges between 50°C and 150°C
Easy setup without adjustment
Product-independent switching point
Optimum rod design avoids build-up and jamming
Easy cleaning
maintenance-free and does not wear
Power consumption is 0.5W (maximum)
Applications
Level measurement and point level detection in the grain silo
Level measurement and point level detection in small storage containers
Certifications
IP66 rated
IP68 (0,2bar) rated
IP67 rating
IP68 (1bar) rating
ATEX II 1/3 D IP6X T
