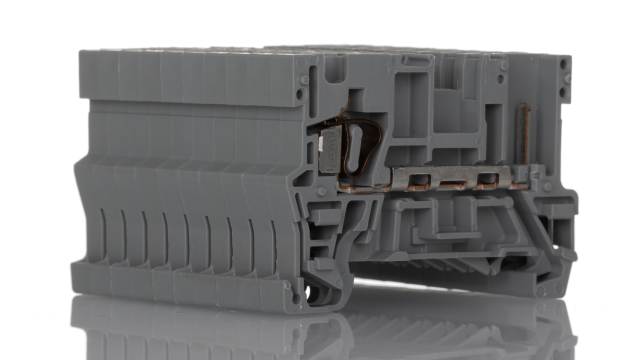

WAGO 789 Series Interface Module, Cage Clamp Connector, DIN Rail | 789-913

Name: WAGO 789 Series Interface Module, Cage Clamp Connector, DIN Rail | 789-913
SKU: 7724-972
Availability: InStock

1 ₫

Điện thoại/ Zalo tư vấn: 0921.811.784
* Chất lượng: Mới 100%
* Bảo hành: Chính hãng
* Chứng từ : CO/CQ, hóa đơn VAT

Đã bán: 11 pcs

Mfr. Part No: 789-913

Đánh giá: ⭐⭐⭐⭐⭐

SKU: 7724-972 Categories: Interface Modules, WAGO

Description

Specifications

Attribute	Value
Brand	WAGO
Product Type	Interface Module
Wire Size	20/12 AWG
Connector Type	Cage Clamp
Mount Type	DIN Rail
Minimum Operating Temperature	0°C
Maximum Operating Temperature	50°C
Standards/Approvals	EN 50090-2-2
Width	35 mm
Length	90mm
Series	789

Product Details

The WAGO specialty electronic module offers a standard interface to SMI LoVo-compliant electrical drives. The interface represents a purely physical level conversion between the standard RS-232 interface and the SMI LoVo signal level. The interface module operates up to 16 SMI drives. The entire SMI range of functions can be used. The special WAGO-I/O-PRO function blocks communicate between applications and SMI LoVo drives. The module must be supplied with an external 24 VDC power source. RS-232 and 24 V power supply are electrically isolated from the SMI LoVo connections.

Protection type IP20

RoHS compliant
